MANIPULATORS

NEW!

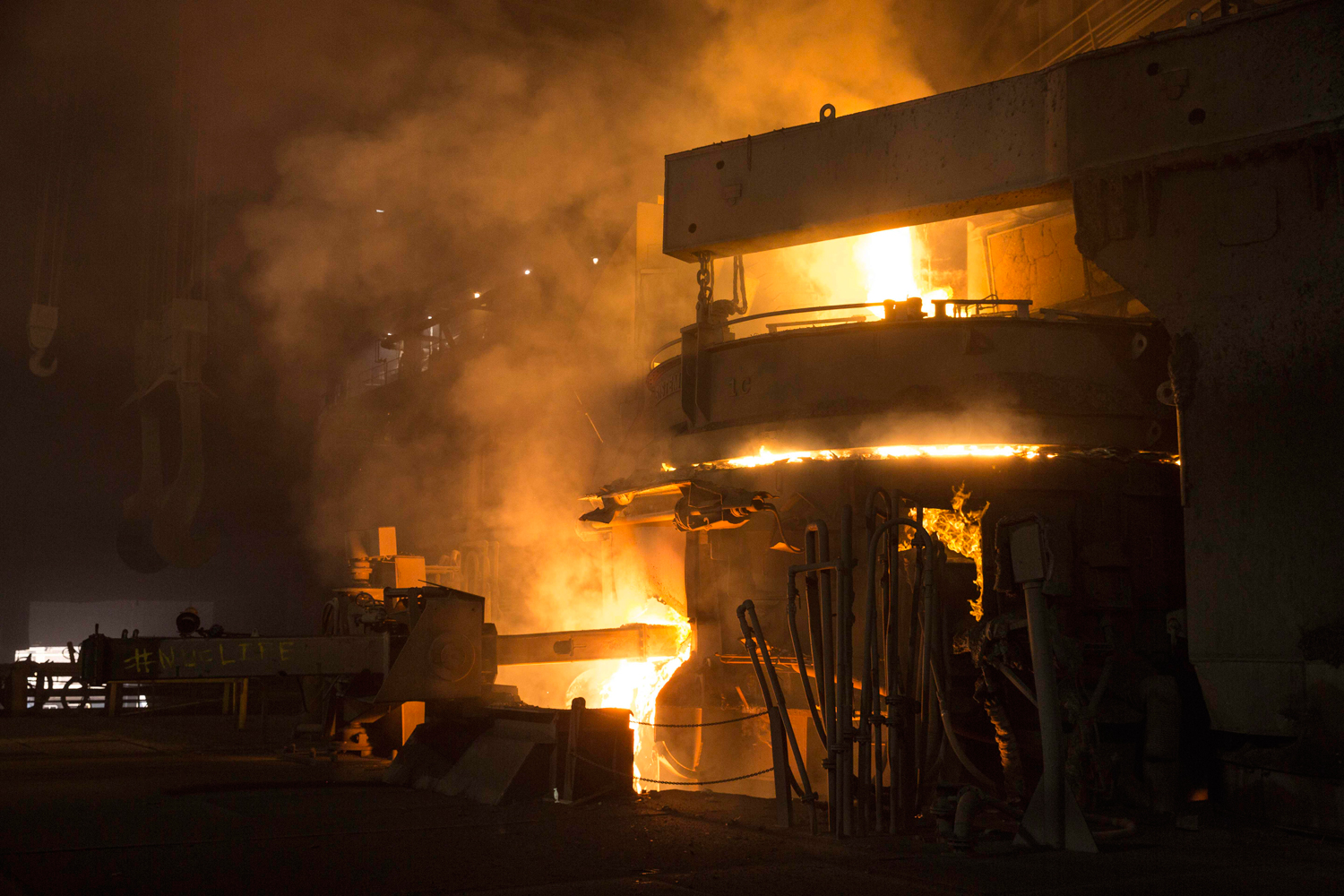

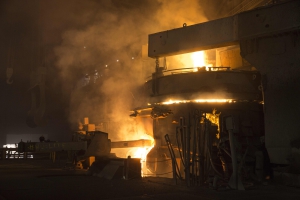

DOOR CLEARING MANIPULATOR

• SAFETY! The System replaces Operator driven equipment to clear the door.
• Pushes unmelted or partially melted scrap into the EAF for improved yield.
• Efficiently and rapidly clears the EAF door for slagging off before tapping.
• Helps Operators maintain constant EAF breast elevation.
• Compact design preserves valuable floor space when parked.
• No costly shell modifications are required.
• No cooling water is required.
• Potential to include added features such as temperature sampling.

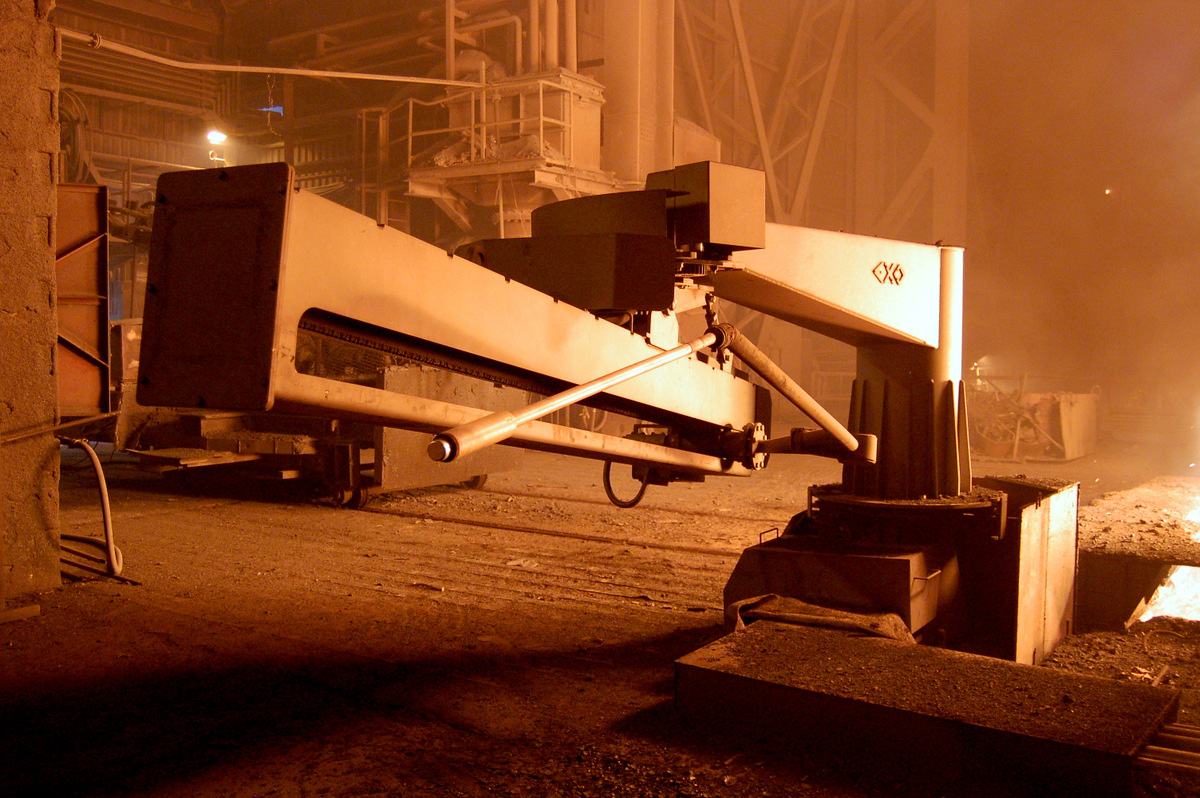

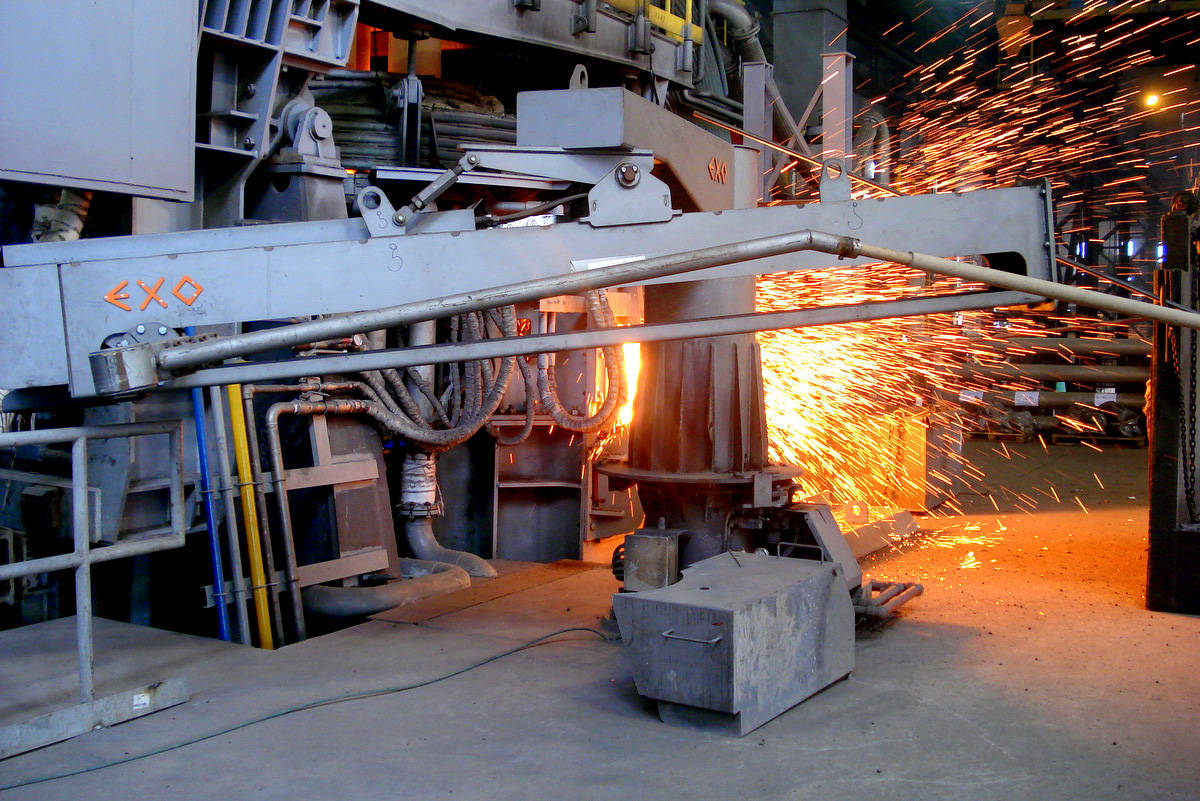

STEEL TEMPERATURE & SAMPLING

• Designed for Electric Arc or Ladle Refining Furnaces, automates the temperature and chemistry testing of molten steel.
• Improve safety reducing accident exposure to Operators.
• Improves reliability and accuracy of tests.
• Operates during melting/refining without interruption of metallurgical process reducing delays associated with measurements
• Low maintenance due of robust construction and water cooled design.
• Flexible design options (Turret | Monorail | Suspended).

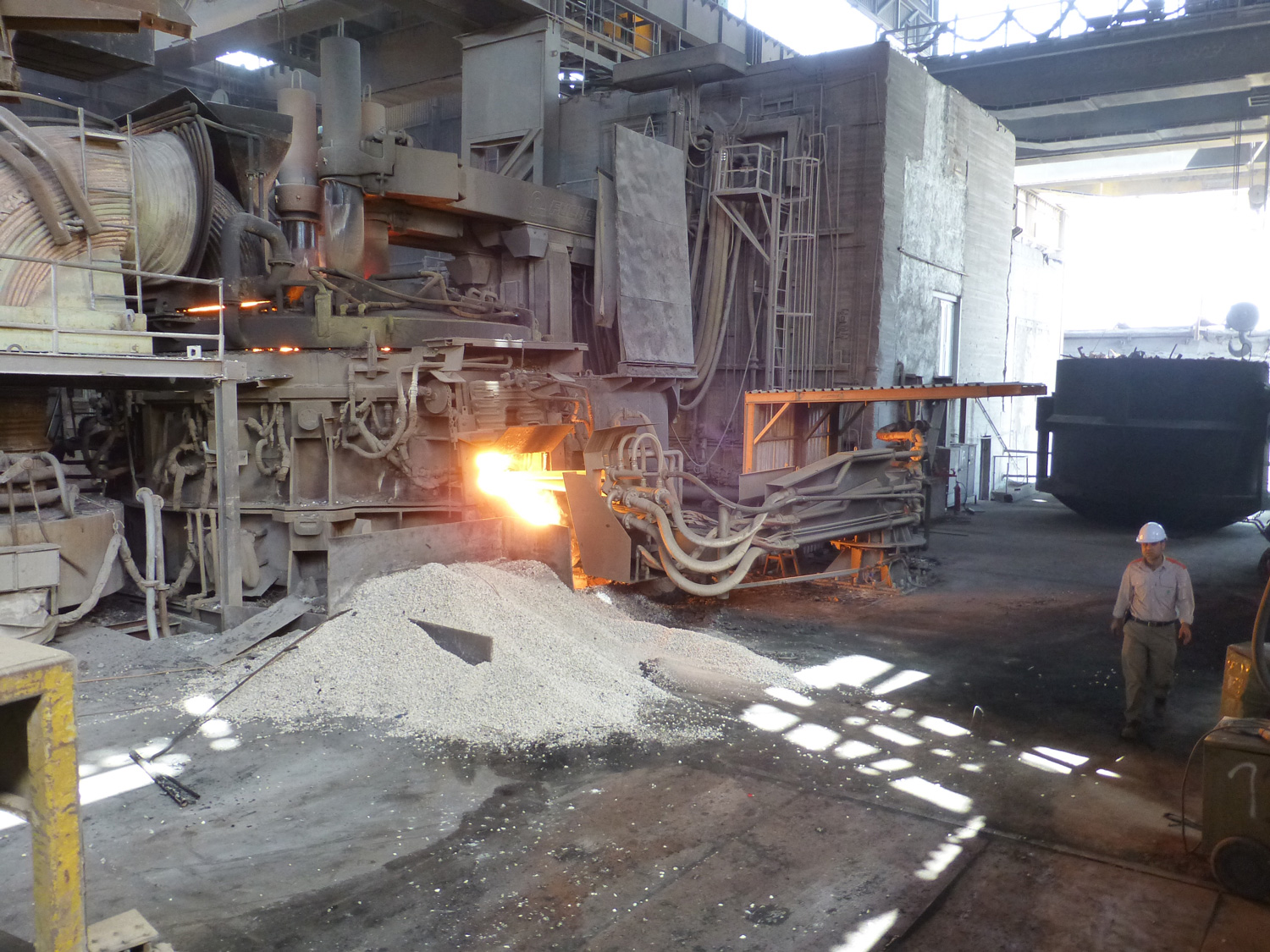

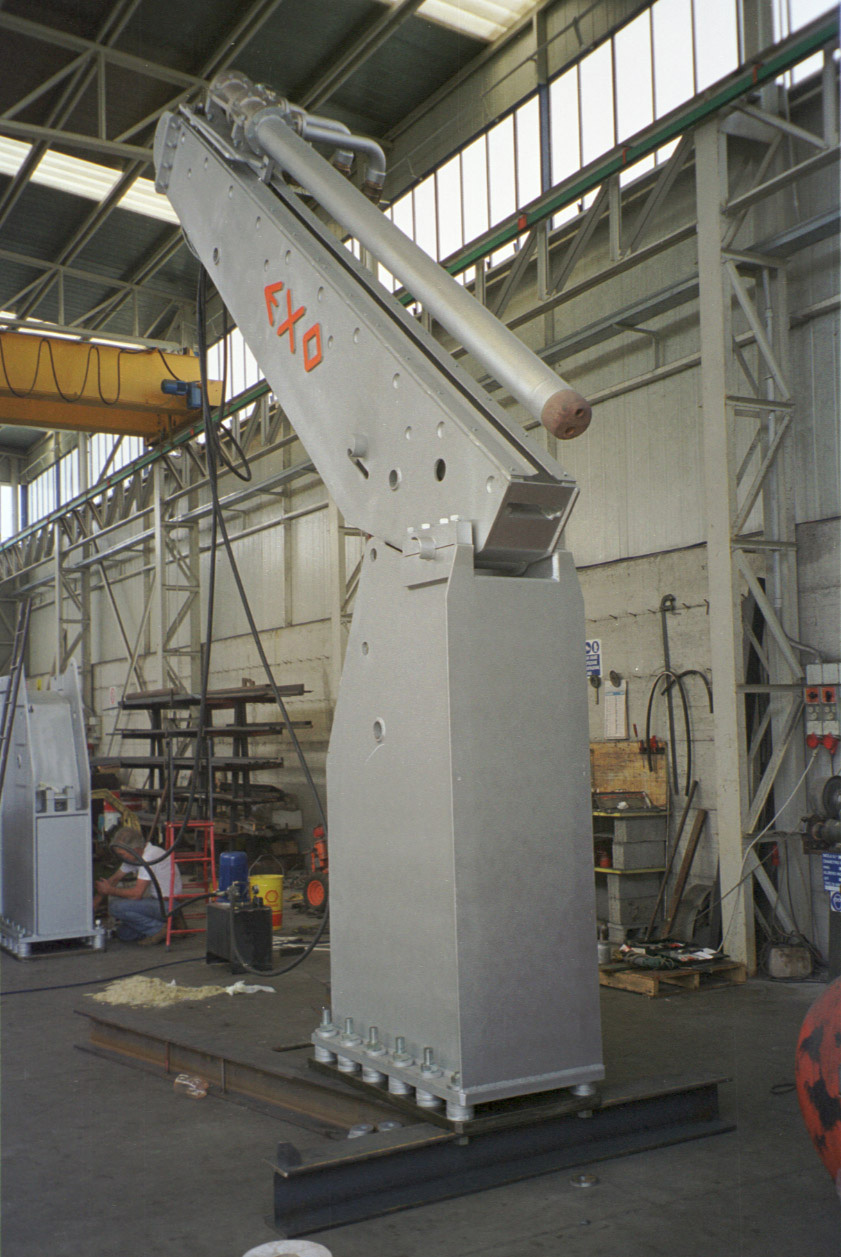

WATER COOLED OXYGEN & CARBON-LIME INJECTION

• Designed for Electric Arc Furnace, eases and enhances the use of oxygen/carbon/lime injection.
• Improve safety reducing accident exposure to Operators compared to manual lancing.
• Increases oxygen and carbon efficiency.
• More efficient foamy slag practice due to controlled carbon injection.
• Faster metallurgical reactions due to high bath turbulence.
• Dramatic increase in chemical energy contribution to melting process.
• Reduction in refining and tap to tap time
• Efficient clearing of the furnace door with oxygen.
• Flexible design options (Turret | Sidewall).

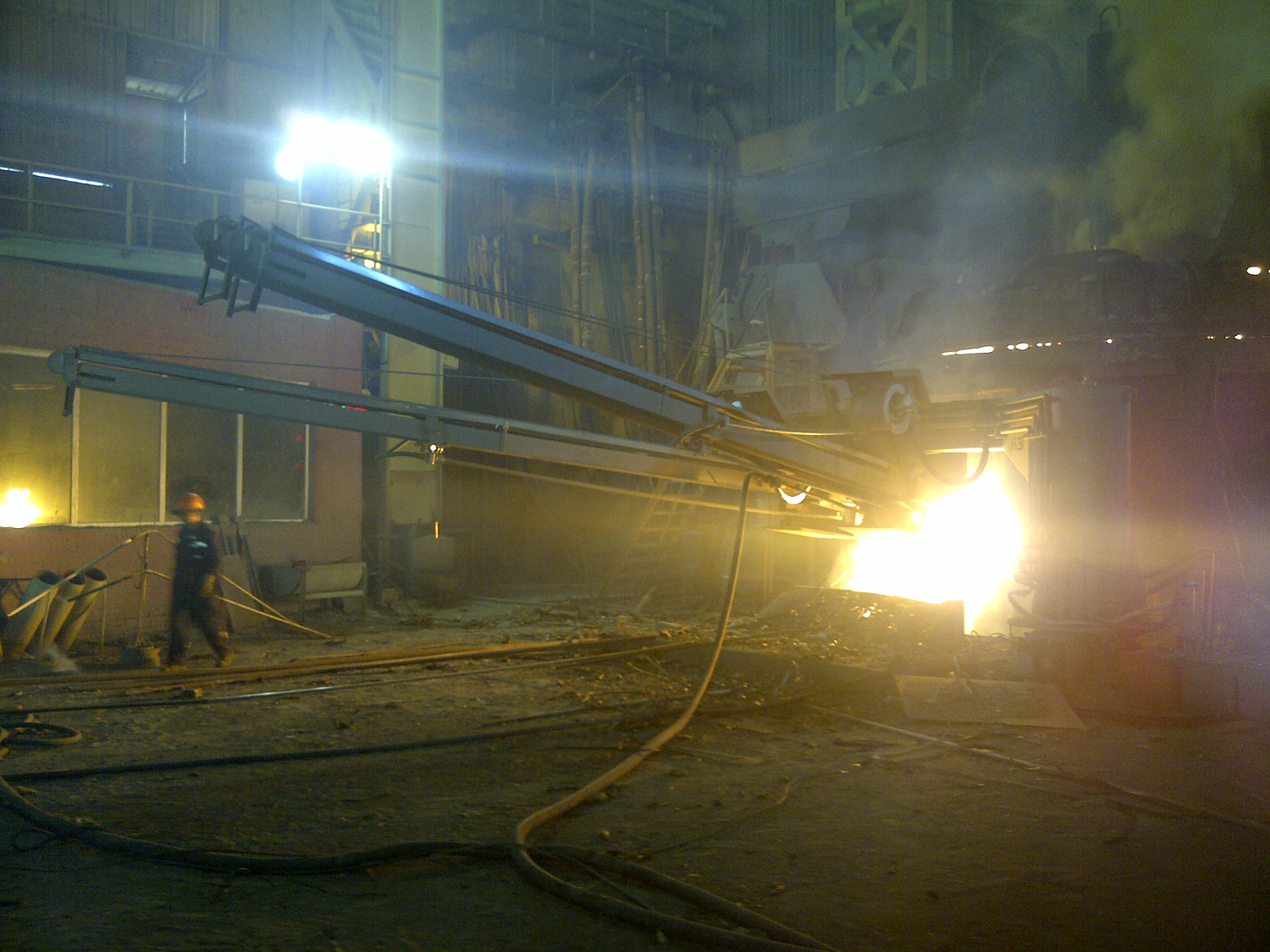

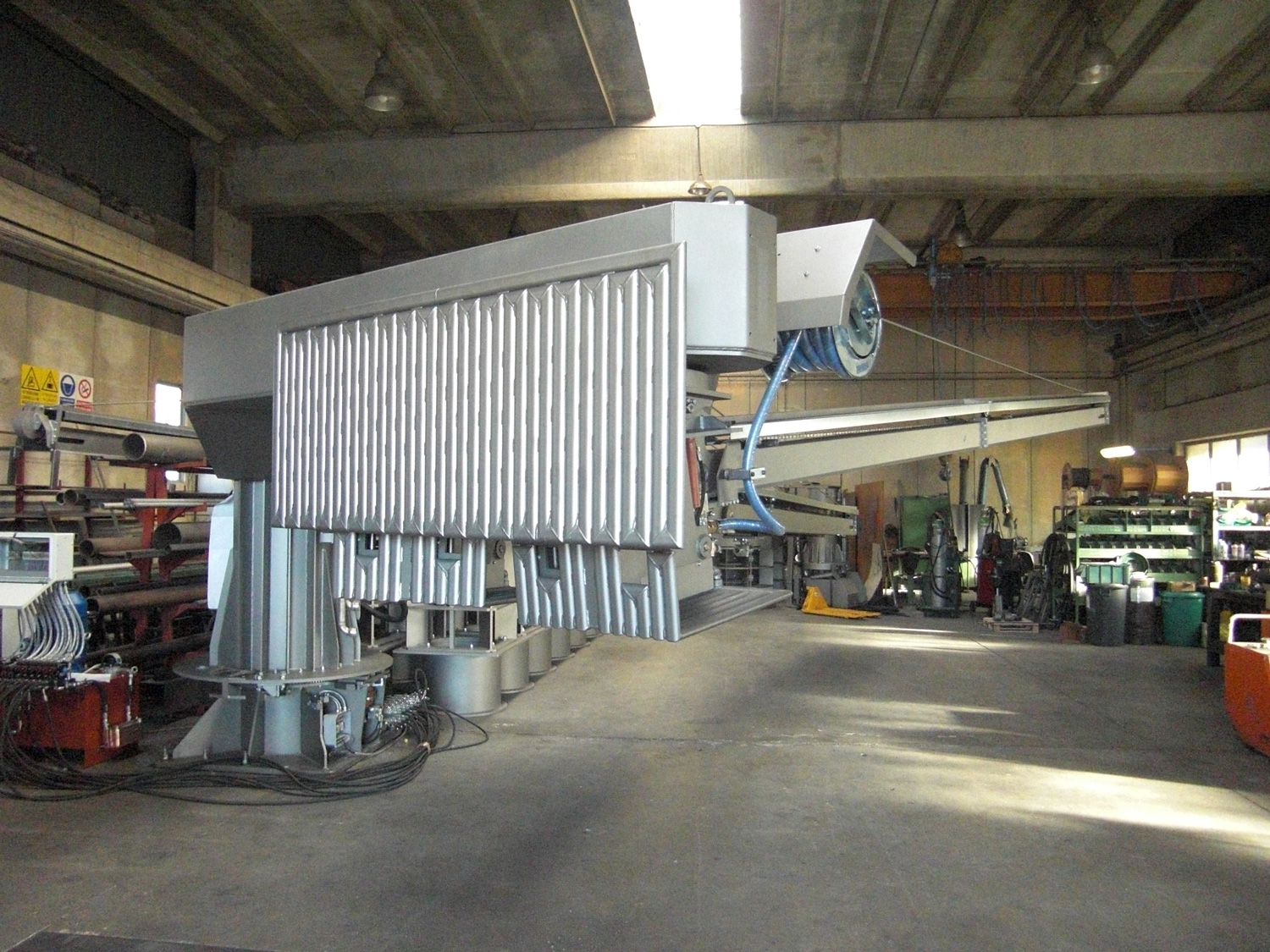

CALORIZED PIPE OXYGEN & CARBON-LIME INJECTION

• Designed for Electric Arc Furnace, eases and enhances the use of oxygen/carbon/lime injection.
• Improve safety reducing accident exposure to Operators compared to manual lancing.
• Increases oxygen and carbon efficiency.
• More efficient foamy slag practice due to controlled carbon injection.
• Faster metallurgical reactions due to high bath turbulence.
• Dramatic increase in chemical energy contribution to melting process.
• Reduction in refining and tap to tap time
• Efficient clearing of the furnace door with oxygen.
• Easy access for pipe replacing (no slides / tile structure interference for Operator to access lance holder).
• Lance holder driving system embedded to prevent Operator accidental contact and protected from dust and steel /slag splashing.
• Flexible design options (1 to 4 calorized pipes independently controlled).

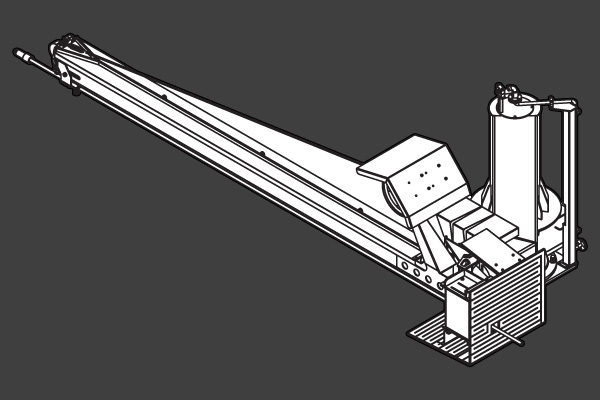

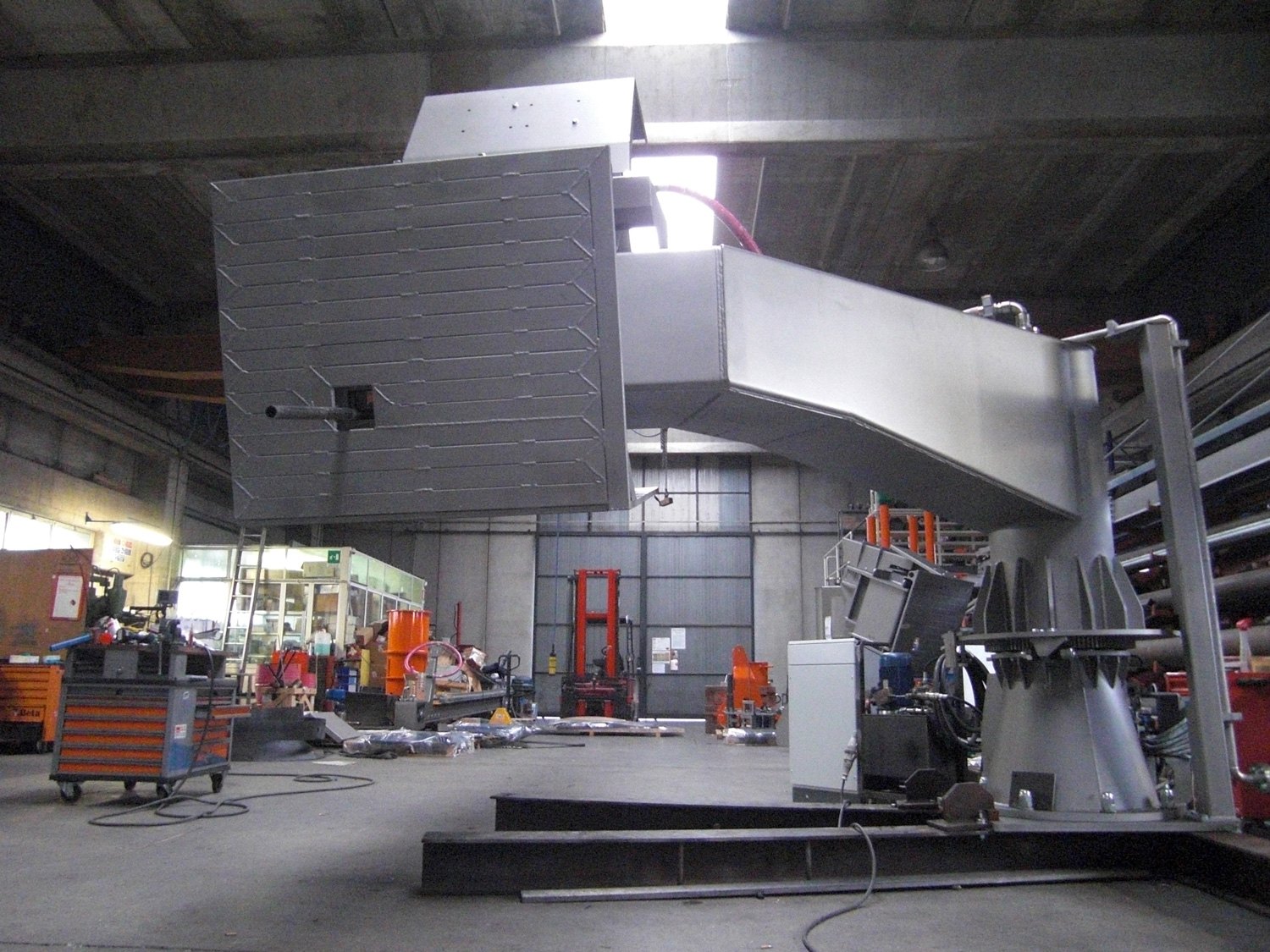

COMPACT CALORIZED PIPE OXYGEN & CARBON-LIME INJECTION

• Same features of the CALORIZED PIPE OXYGEN & CARBON-LIME INJECTION MANIPULATOR.
• Flexible design options (1 to 2 calorized pipes independently controlled).

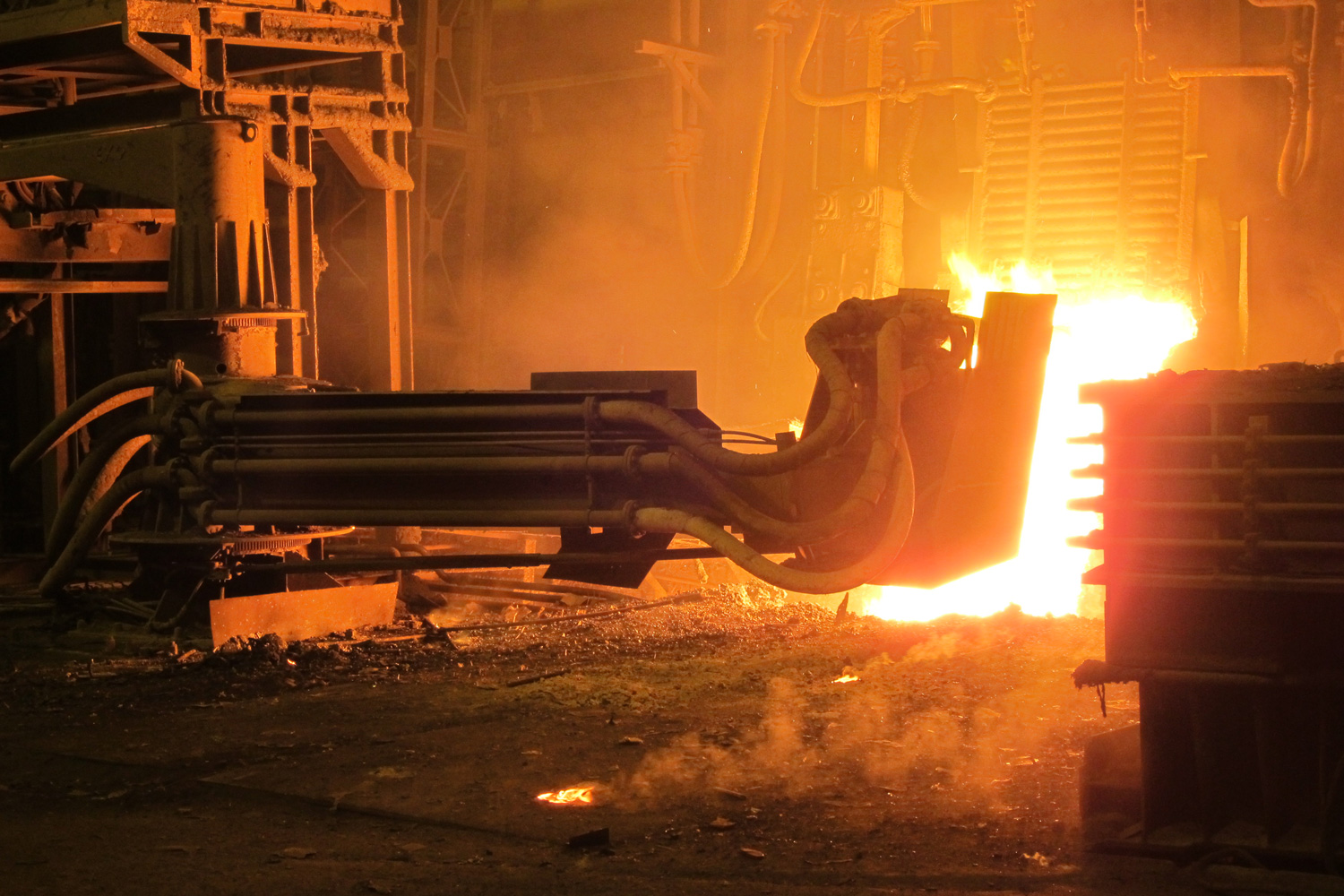

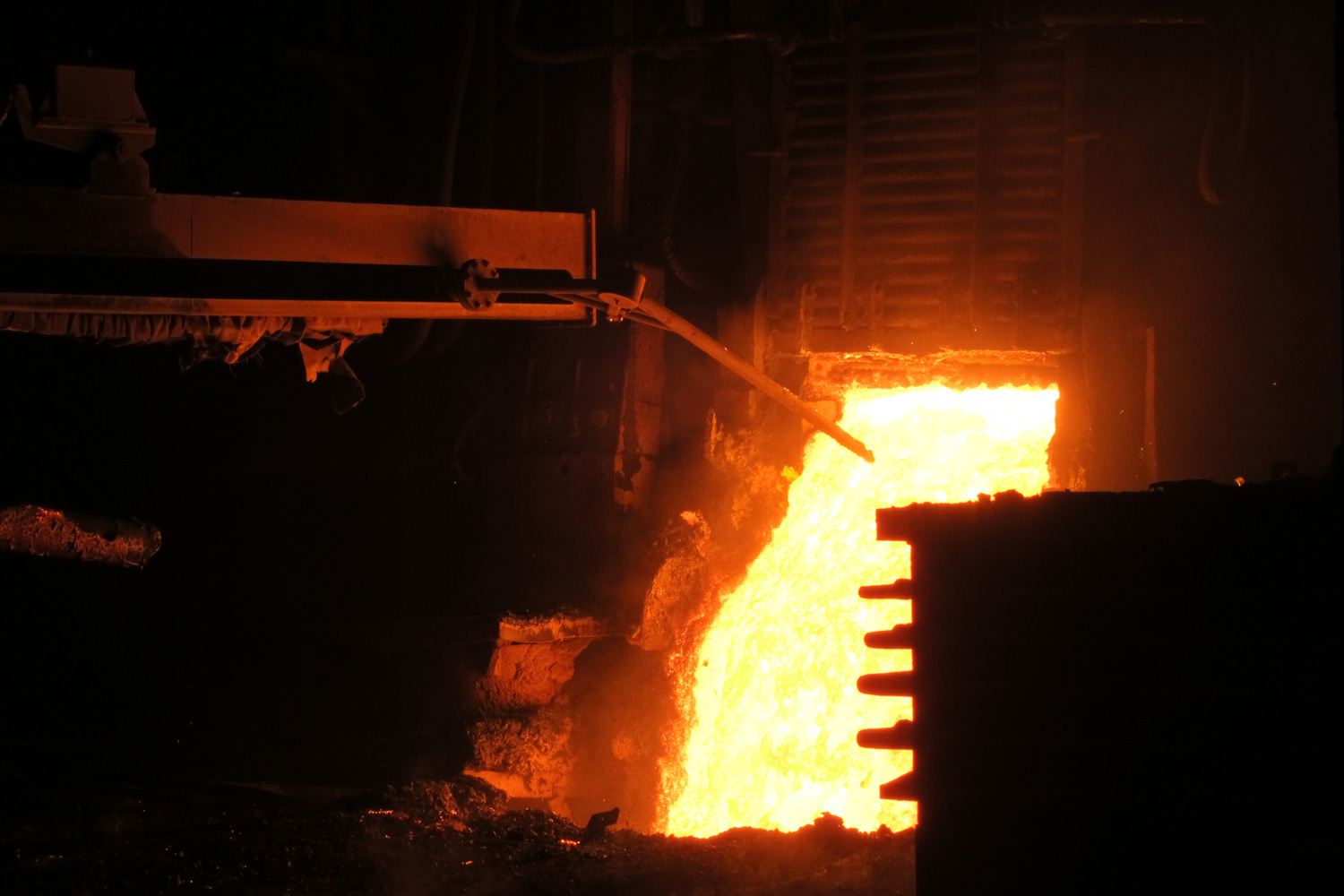

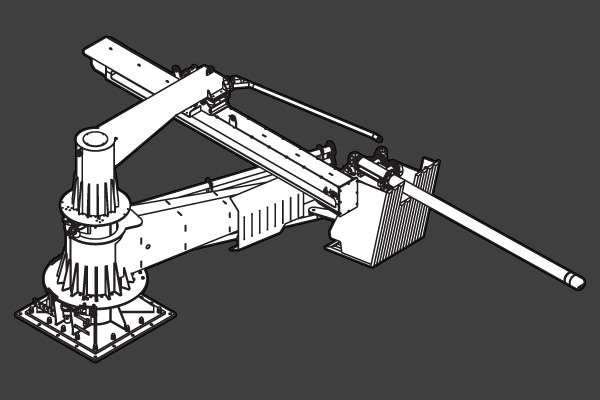

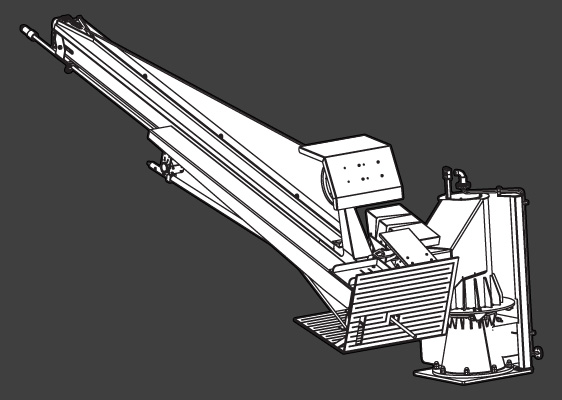

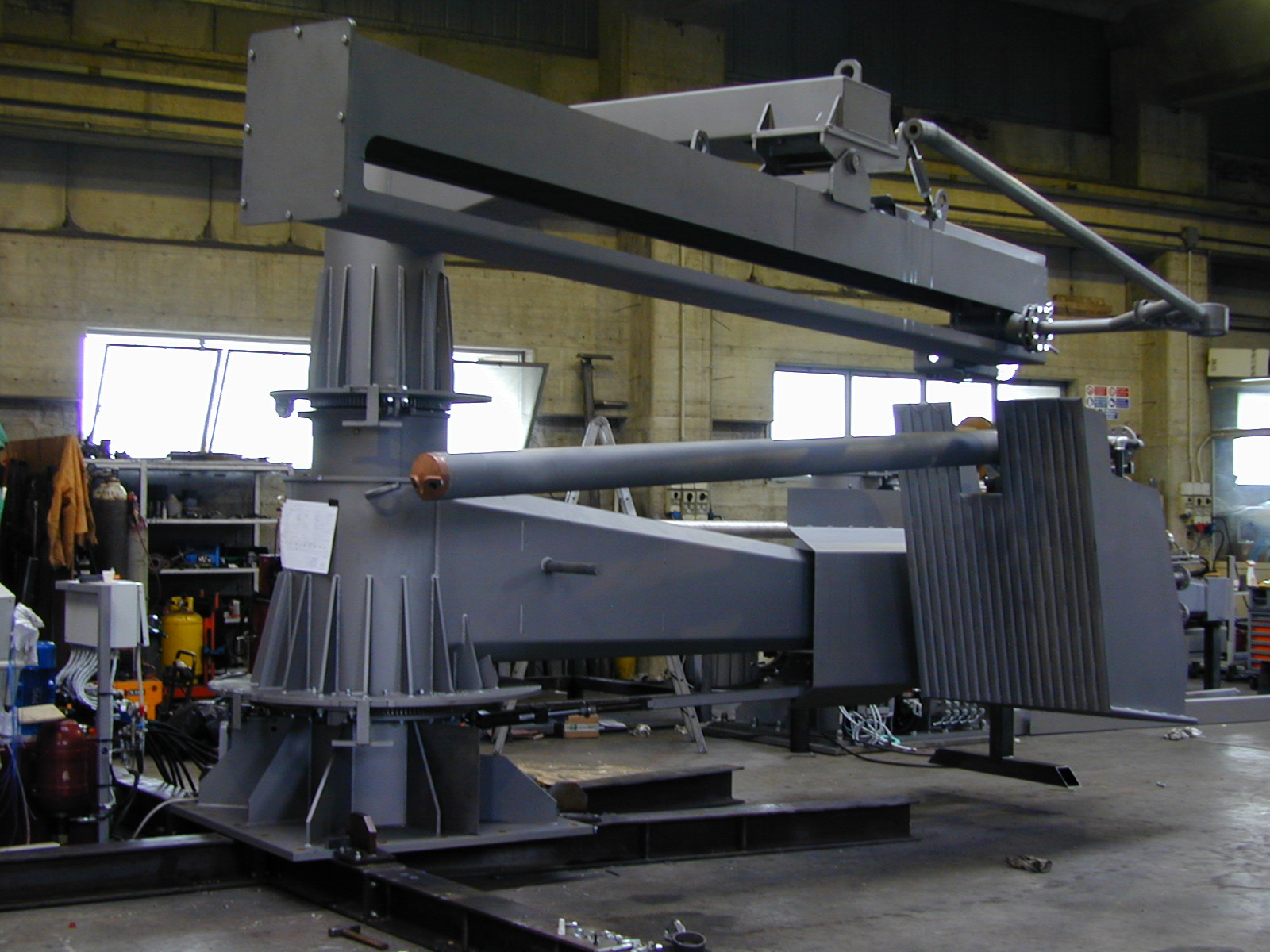

COMBINED TEST & INJECTION

• The STEEL TEST and the DOOR OPERATED INJECTION manipulators can be combined on a single unit.
• Each manipulator can be independently and simultaneously operated.
