COMBUSTION

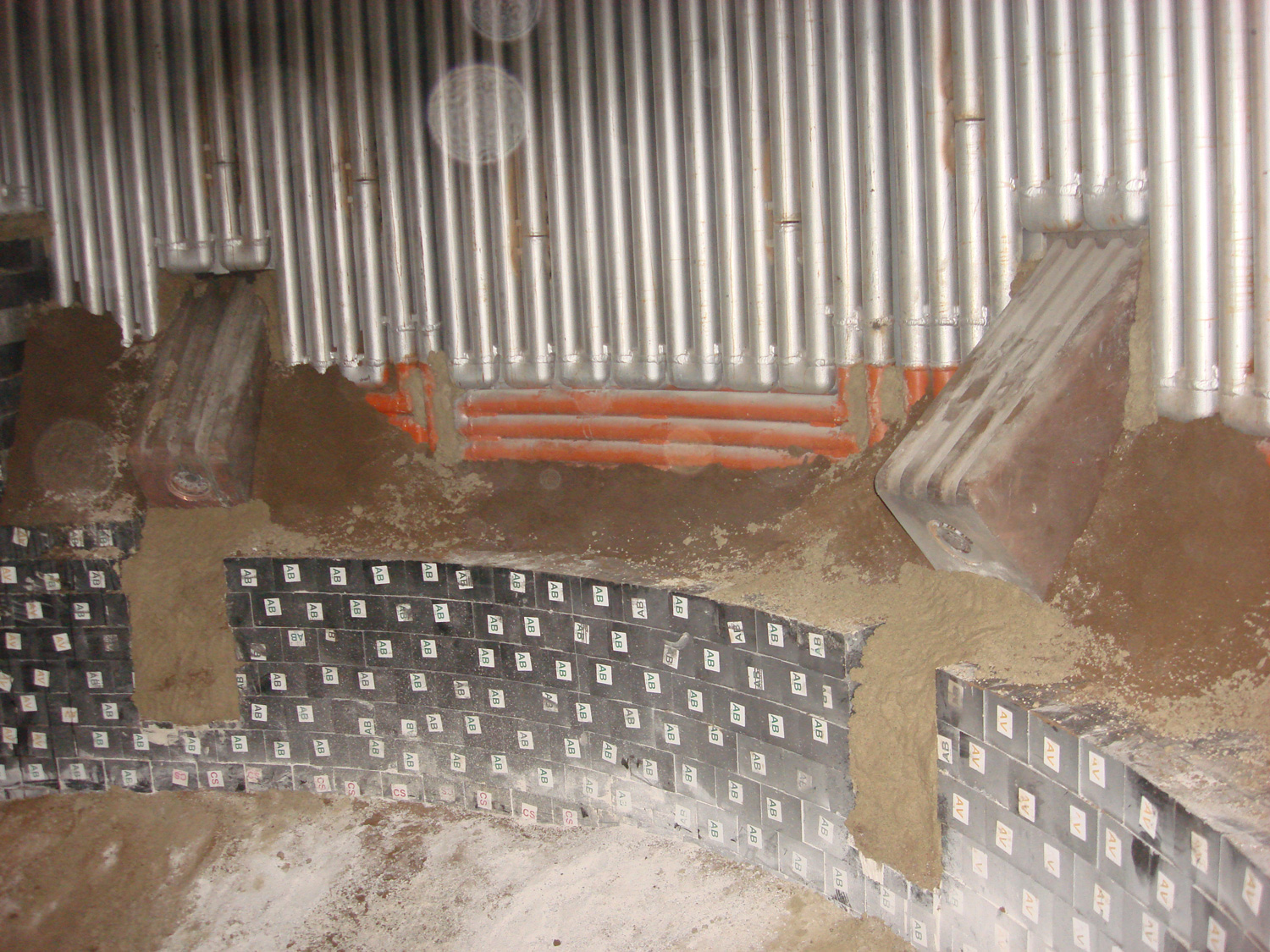

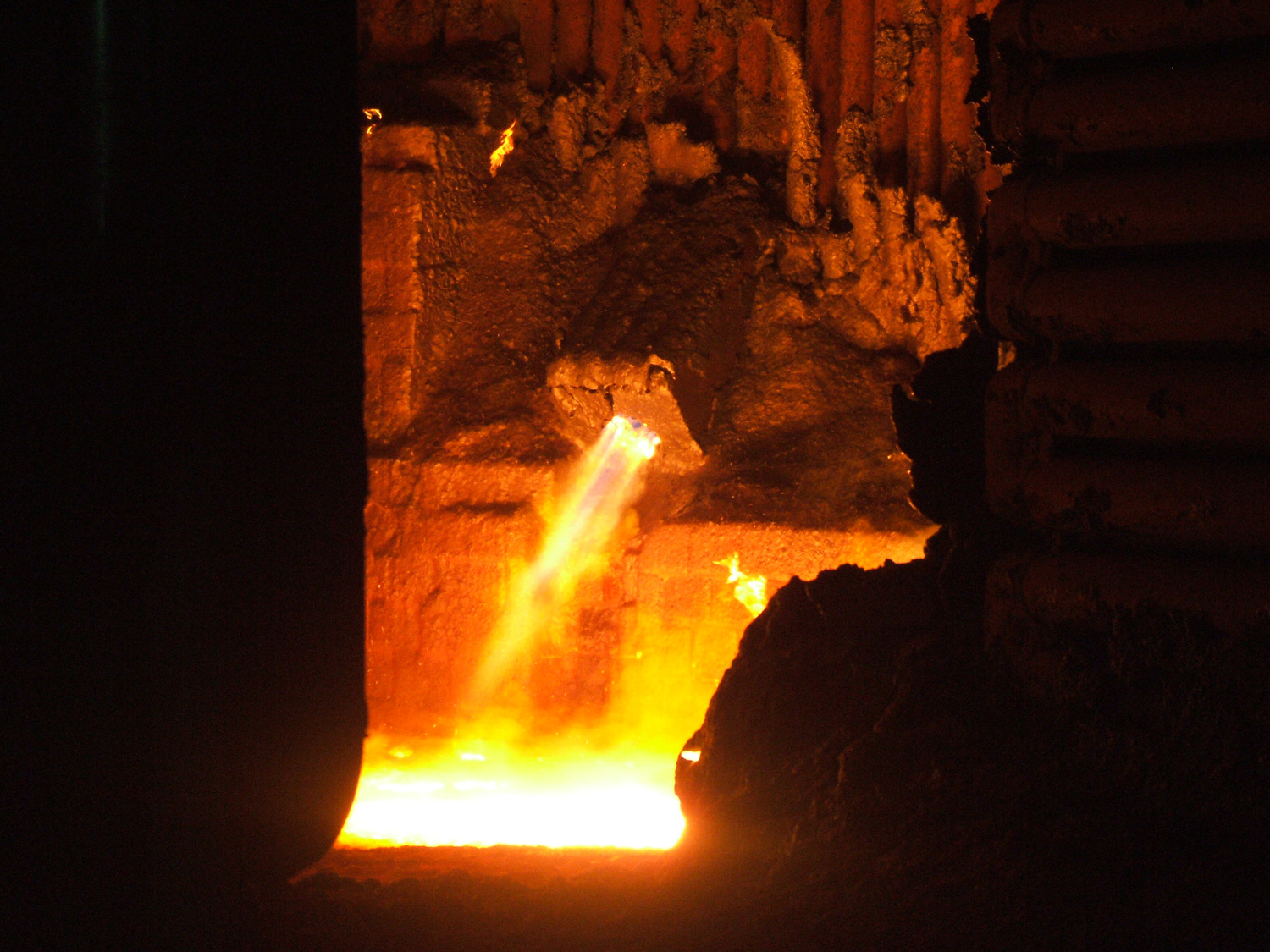

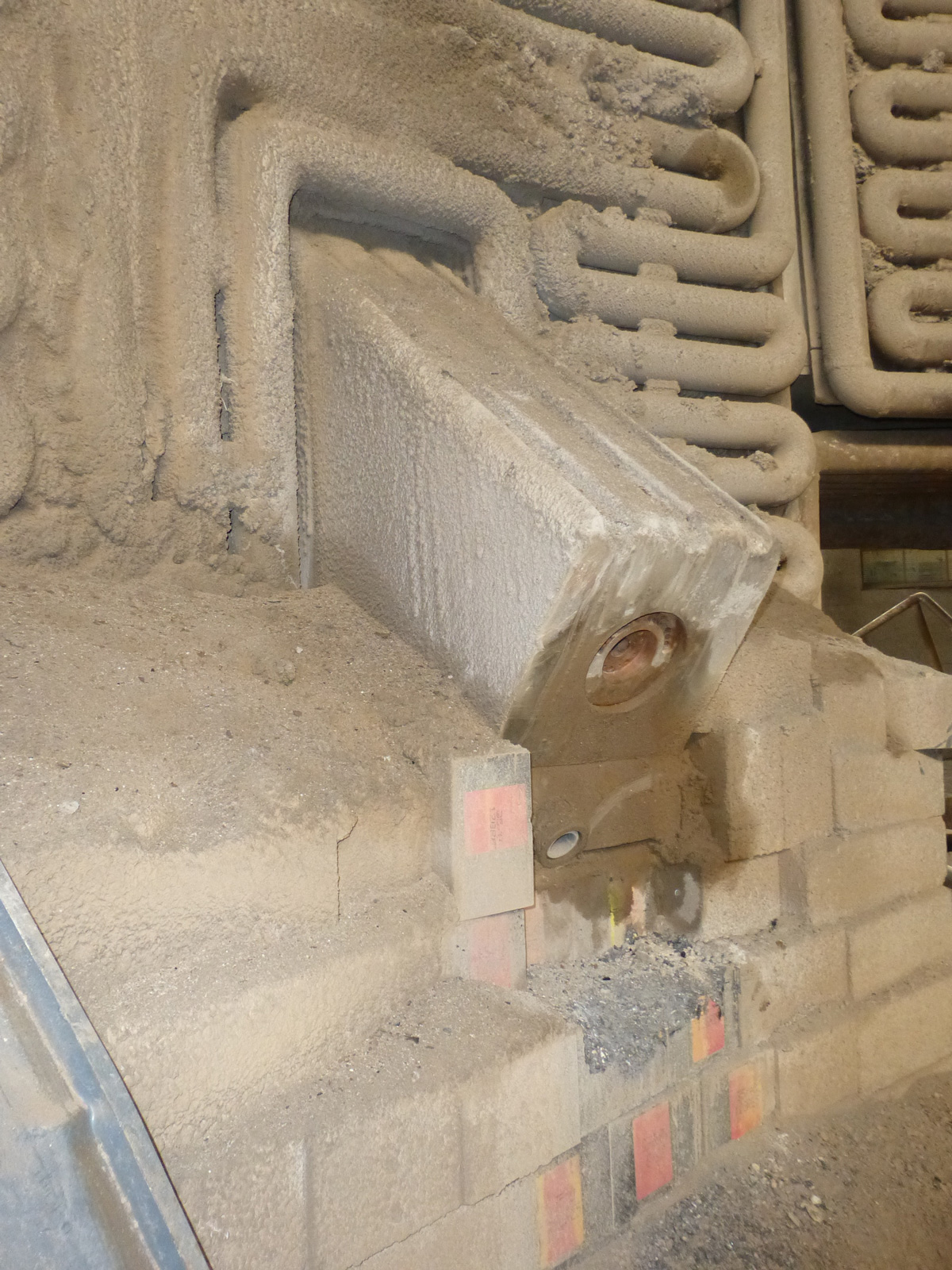

PROTRUDING COPPER MOUNTING UNIT FOR BURNER/INJECTORS

• Designed for Electric Arc Furnace Side Panel.
• Copper cast made, water cooled.
• It is positioned above the refractory bricks to reduce refractory erosion.
• Slag retainers above the box will give also an additional protection from arc radiation.

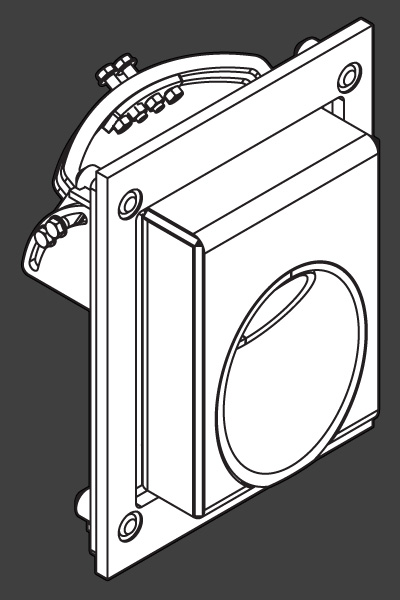

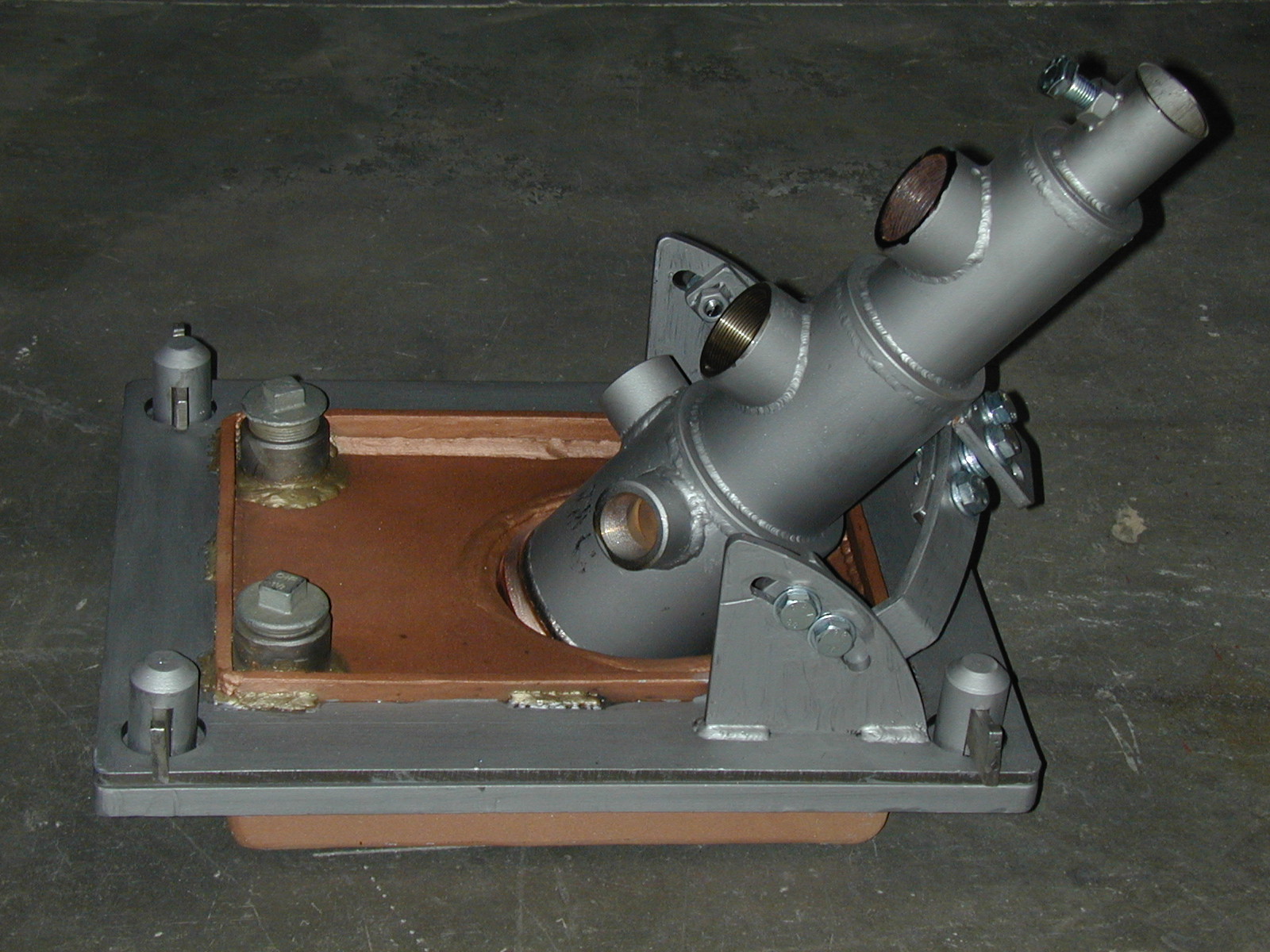

FLAT COPPER MOUNTING UNIT FOR BURNER/INJECTORS

• Designed for Electric Arc Furnace EBT (or Side) Panel.
• Copper plate made, water cooled.
• It is positioned on the water cooled panel opening.
• Allows adjust of Burner from 20° to 40° vertical angle and –10° +10° from radial angle.

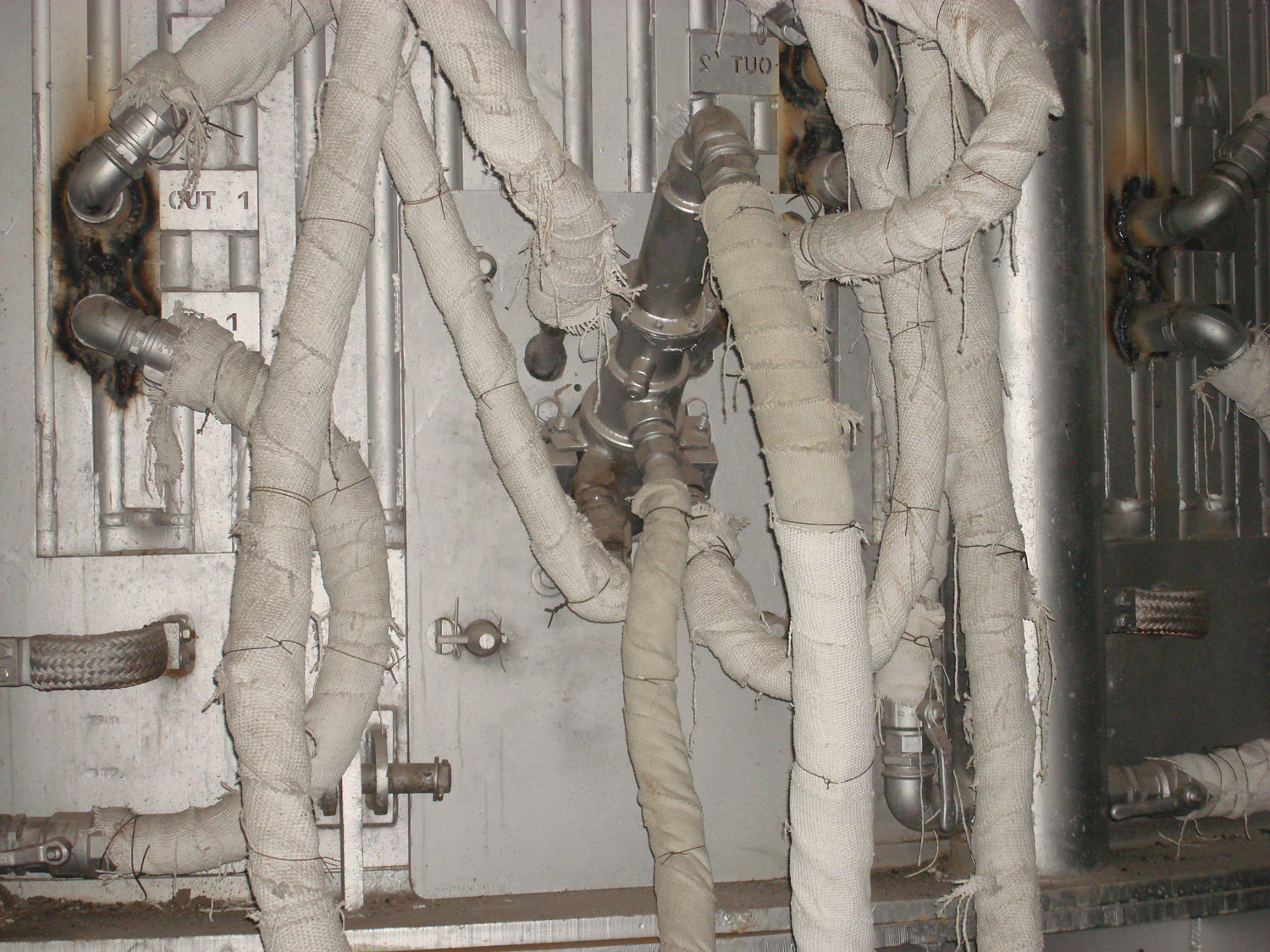

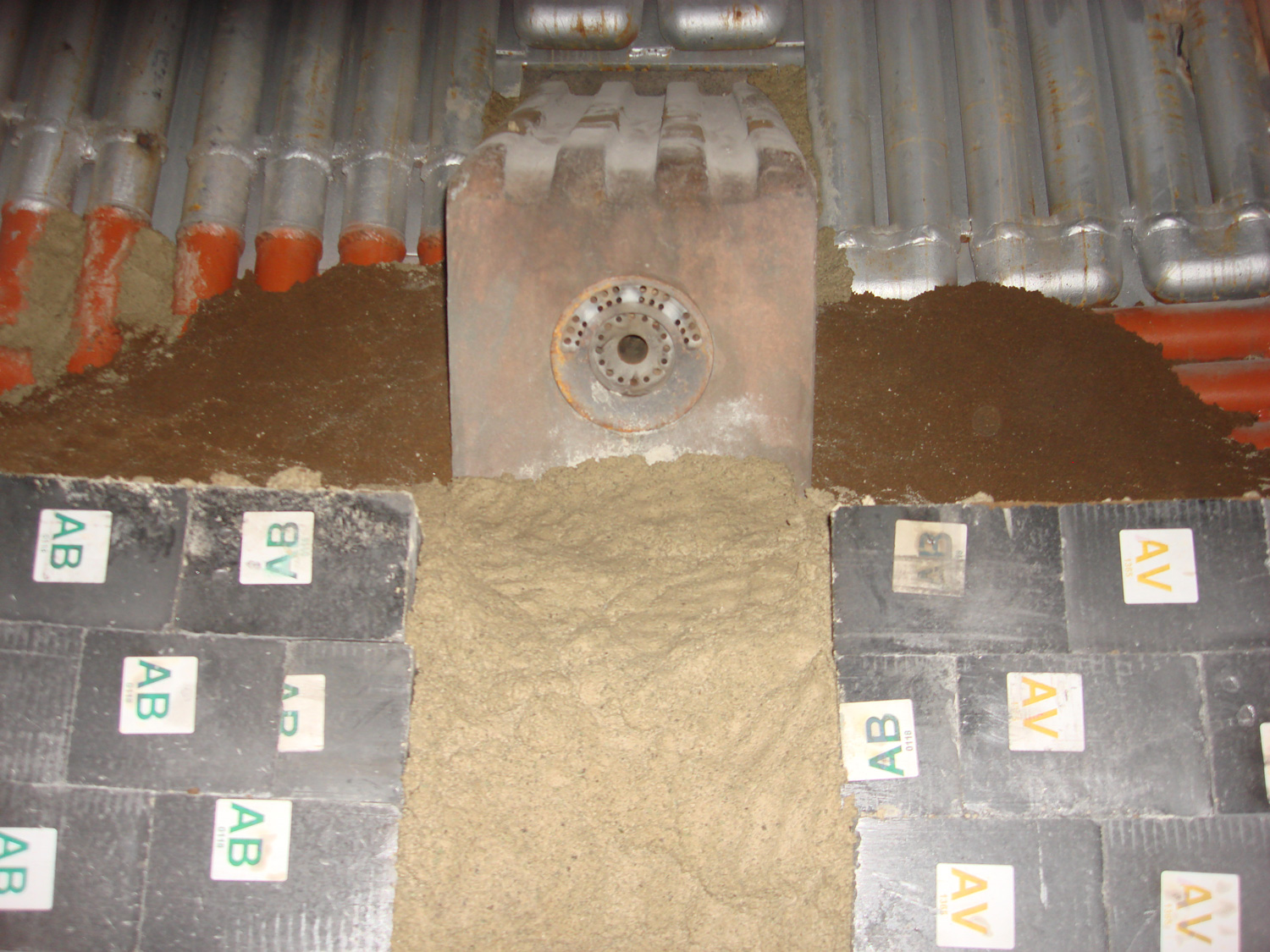

BURNER OXYGEN INJECTOR

• Designed to perform the full range of EAF combustion and oxygen injection operations.
• Reduces consumption of electrical energy.
• Eliminates need for mechanical injection manipulators.
• High thermal efficiency multi-nozzle burner.
• Multi-nozzle design permits supersonic velocities and high combustion efficiency.
• Broad flame envelope provides efficient pre-heating and melting.
• Concentrated shielded oxygen jet allows high velocity bath penetration.
• External mixing prevents internal combustion and explosive hazards.
• Tip machined from electrolytic copper.
• Water cooled for low maintenance.
• For protruding or flat copper mounting unit.

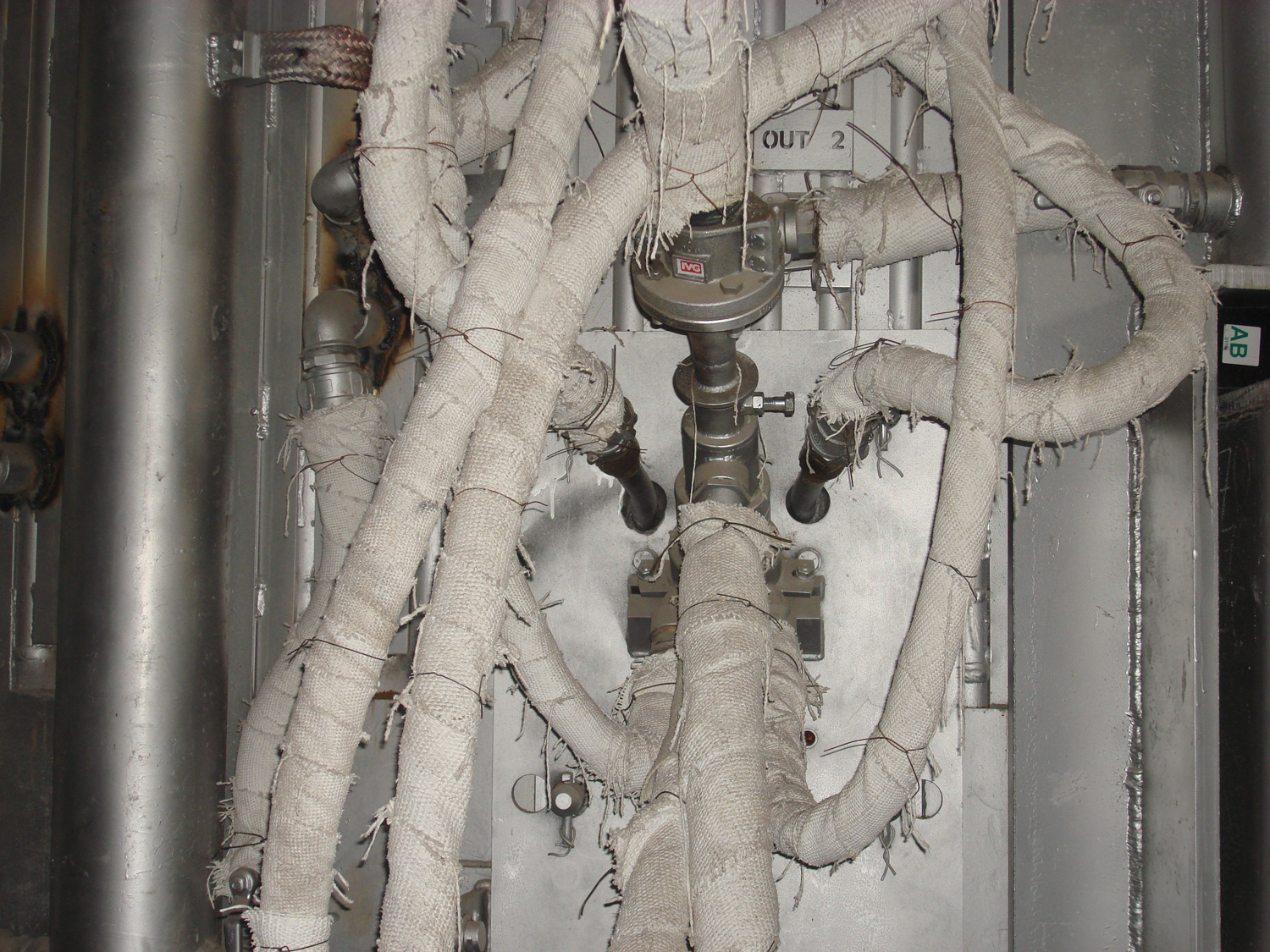

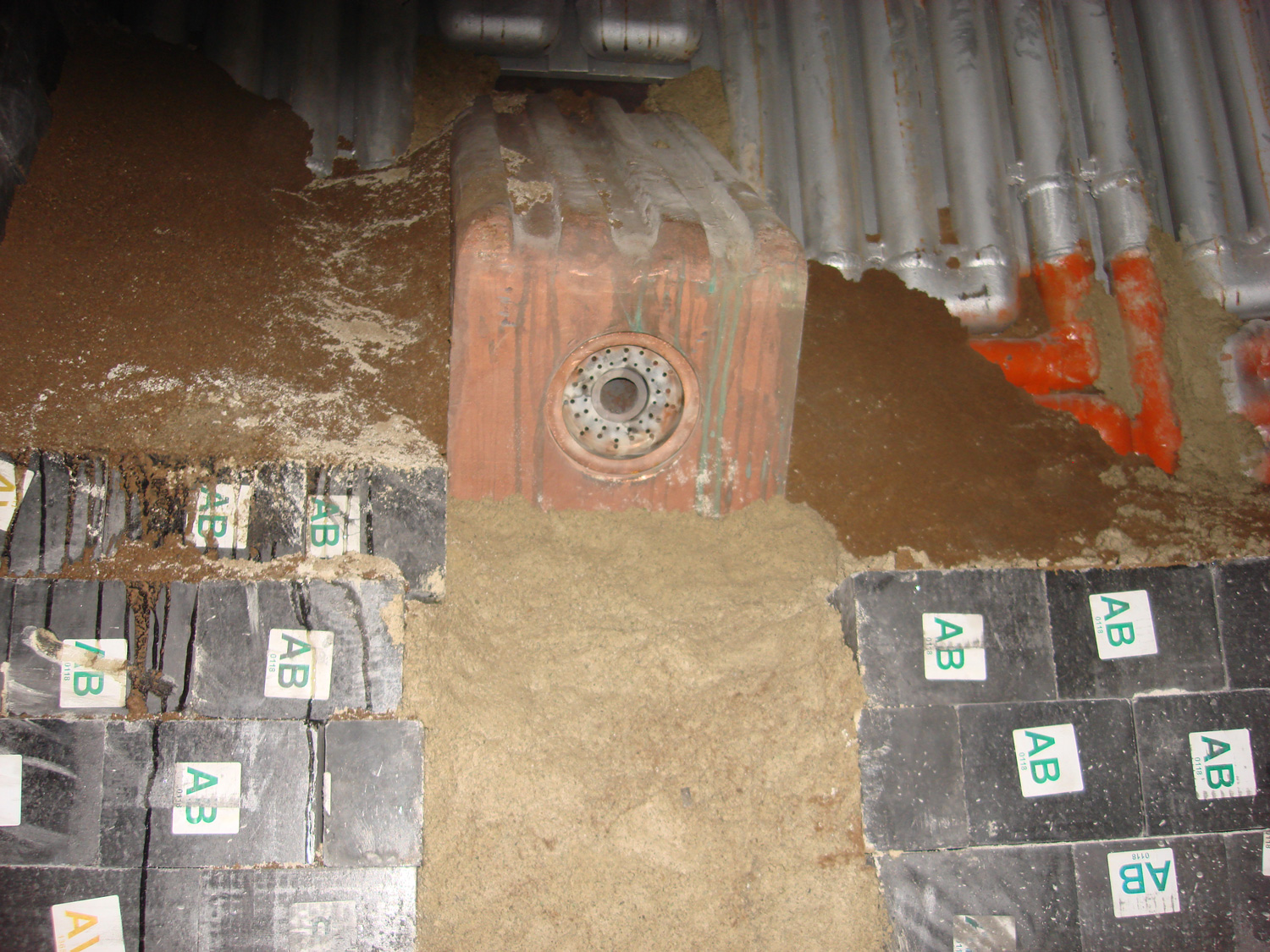

BURNER CARBON/LIME INJECTOR

• Designed to perform the full range of EAF combustion and carbon/lime injection operations.
• Reduces consumption of electrical energy.
• Eliminates need for mechanical injection manipulators.
• High thermal efficiency multi-nozzle burner.
• Multi-nozzle design permits supersonic velocities and high combustion efficiency.
• Broad flame envelope provides efficient pre-heating and melting.
• Burner flame shields carbon/lime jet for efficient slag foaming.
• External mixing prevents internal combustion and explosive hazards.
• Tip machined from electrolytic copper.
• Water cooled for low maintenance.
• For protruding or flat copper mounting unit.
